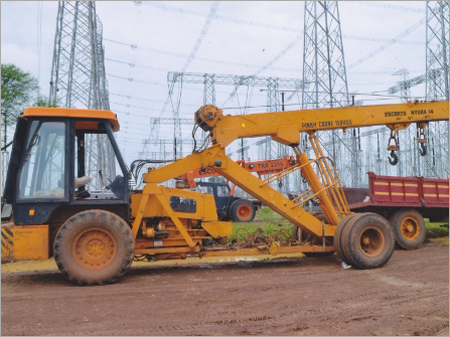

14 Ton Capacity Hydra

14 Ton Capacity Hydra
14 Ton Capacity Hydra
Service Code : 01

We are a globally admired service provider of 14 Ton Capacity Hydra. The provided services are known for high reliability, long life, timely execution and cost-effectiveness. Our 14 Ton Capacity Hydra service is performed by trained and qualified professionals by using latest tools and equipments. The service that is provided to various construction equipments is offered with 100% guarantee.

Specifications:

Engine: Simpson S-433 , 4 cylinder, water cooled diesel engine, rated power 49 BHP@2200 rpm or equivalent

Transmission
Heavy duty transmission for crane application with 6 forward and 2 reverse speeds with high low selector switch Travel Speed 25 km/hr ( restricted as per safety norms )

Steering

  • Articulated power steering , hydraulically controlled through two doubling acting jacks
  • Articulation up to 56 deg
  • Turning radius: 6.5 m

Tyres

  • Front : 10.00X20-16PR( Four nos )
  • Rear : 13.00X24-12PR ( Two nos )

Boom
Heavy duty, three part. box type, hydraulically operated

Hoist Mechanism
4 Falls, hydraulic winch (capacity 10T), rope dia 13 mm

Capacities

  • Fuel Tank : 45 ltr
  • Hydraulic Tank : 90 ltr
  • Axle reduction housing : 2.45 ltr

Operation weight: 10500 kg

Safety devices

  • Overload audio warning
  • Safety brake on hoist
  • Cylinder guard for protection
  • Overhoist audio warning system
  • Hose failure protection device
  • Under the standard accessories

All weather cabin
Lift cylinder guard
Front Bumper
Rear view mirror
Reflectors
Turn & Reverse lamp
